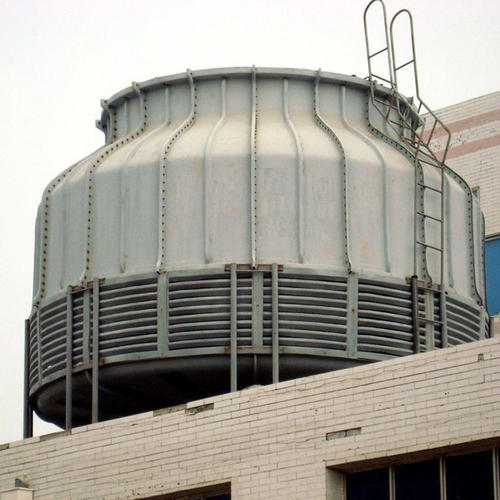

Technical parameters of 150T circular counterflow FRP cooling tower

Author:Trlon  Views:  Time:2020-10-19
Technical parameters of 150T circular counterflow FRP cooling tower
Item content data Remarks
baserQ4Cooling tower noise reduction treatment manufacturer
thisrQ4Cooling tower noise reduction treatment manufacturer
ParticipaterQ4Cooling tower noise reduction treatment manufacturer
number
Cooling tower type Counter-flow circular cooling tower
Cooling tower model DBNL4-150T Standard
Cooling circulating water volume 150m3/h
Inlet water temperature/outlet water temperature 50℃/45℃ Temperature difference5℃
Environmental dry bulb/wet bulb temperature 31.5℃/28℃
Cooling capacity 585,000kcal/h
Noise value 66.0dB(A) 16m away from the edge of the tower
power supply 380V/3P/50Hz
Water quality requirements 380V/3P/50Hz
designrQ4Cooling tower noise reduction treatment manufacturer
parameter
Air-water ratio 0.55kg/kg
Flywater loss ≤0.02%
Evaporation loss ≤0.833%
net weight 600kg
Running weight 1,750kg
FanrQ4Cooling tower noise reduction treatment manufacturer
parameter
Fan form Axial flow
Air volume 70,200m3/h
speed of the fan 720r/min
Blade diameter(F) 1,450mm
Number of blades 4 pieces/set
transfer method Direct drive
Motor speed 720r/min
Motor Power 2.5 kW
Motor starting method Direct start
mainrQ4Cooling tower noise reduction treatment manufacturer
size
Water tower diameter(F) 3,000mm
Tower height(H) 2,550mm
Water inlet/outlet pipe size(DN) 150mm/150mm
Full water pipe/drain pipe size(DN) 25mm/25mm
Automatic water replenishment size(DN) 20mm
Material Motor Fully enclosed waterproof type
fan Aluminum alloy
Shell F.R.P High quality alkali-free glass fiber matrQ4Cooling tower noise reduction treatment manufacturer
And resin synthesis
basin
Sprinkler system Aluminum alloy&P.V.C
film P.V.Cmaterial Flame retardant
Float valve A.B.S Hong Kong
Inlet system Hot dip galvanized steel&P.V.C
